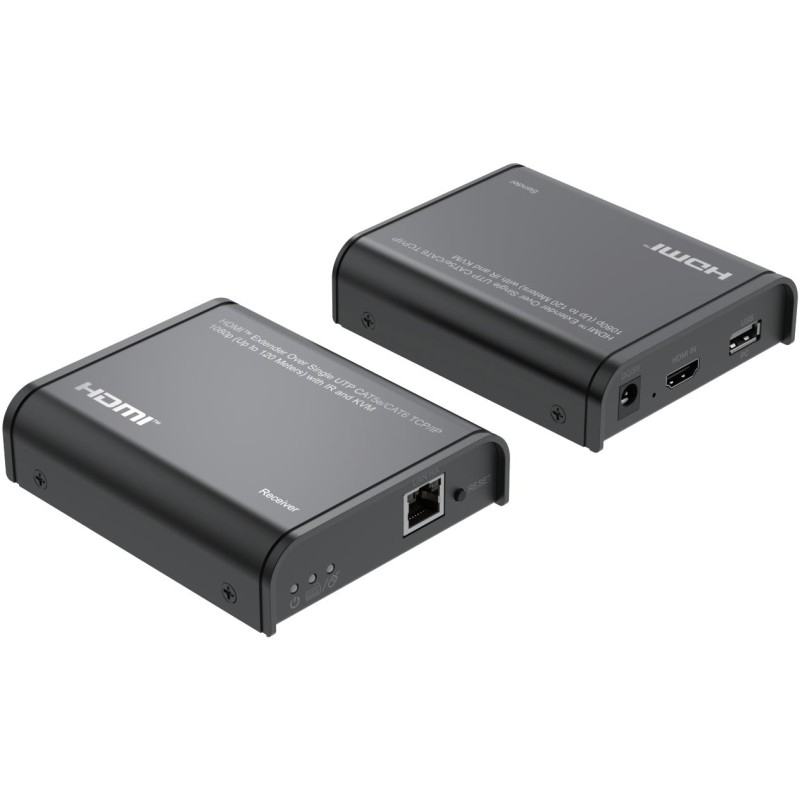

HDMI over IP Extender by UTP 120M (1:N) Support 1080p, KVM U

Input Port

HDMI x 1, USB-A x 2

Output Port

HDMI x 1, USB-A x 1

Extensions Distance

120m (396 feet) for both HDMI and USB signal.

USB transmission rate

480Mbps

USB Standard

USB 2.0

Vertical Frequency Range

50/60Hz

Interlaced Resolutions(50&60Hz)

480i,576i,1080i

Progressive Resolutions(50&60Hz)

480p,576p,720p,1080p

Limited Warranty

1 Year Parts and Labor

Operating Temperature

0℃ to 50℃

Storage Humidity

5% to 90% RH non-condensation

Power Supply

DC 5V 1A x 2pcs

Power Consumption (Max)

TX: 2W, RX: 2W

Extender Unit Cert

FCC, CE, RoHS

Power Supply Cert

FCC, CE, RoHS

Dimension(LxWxH)

TX/RX: 110 x 90 x 27mm

Net Weight

TX:160g, RX:170g

Material

Metal

User Manual

English Version
